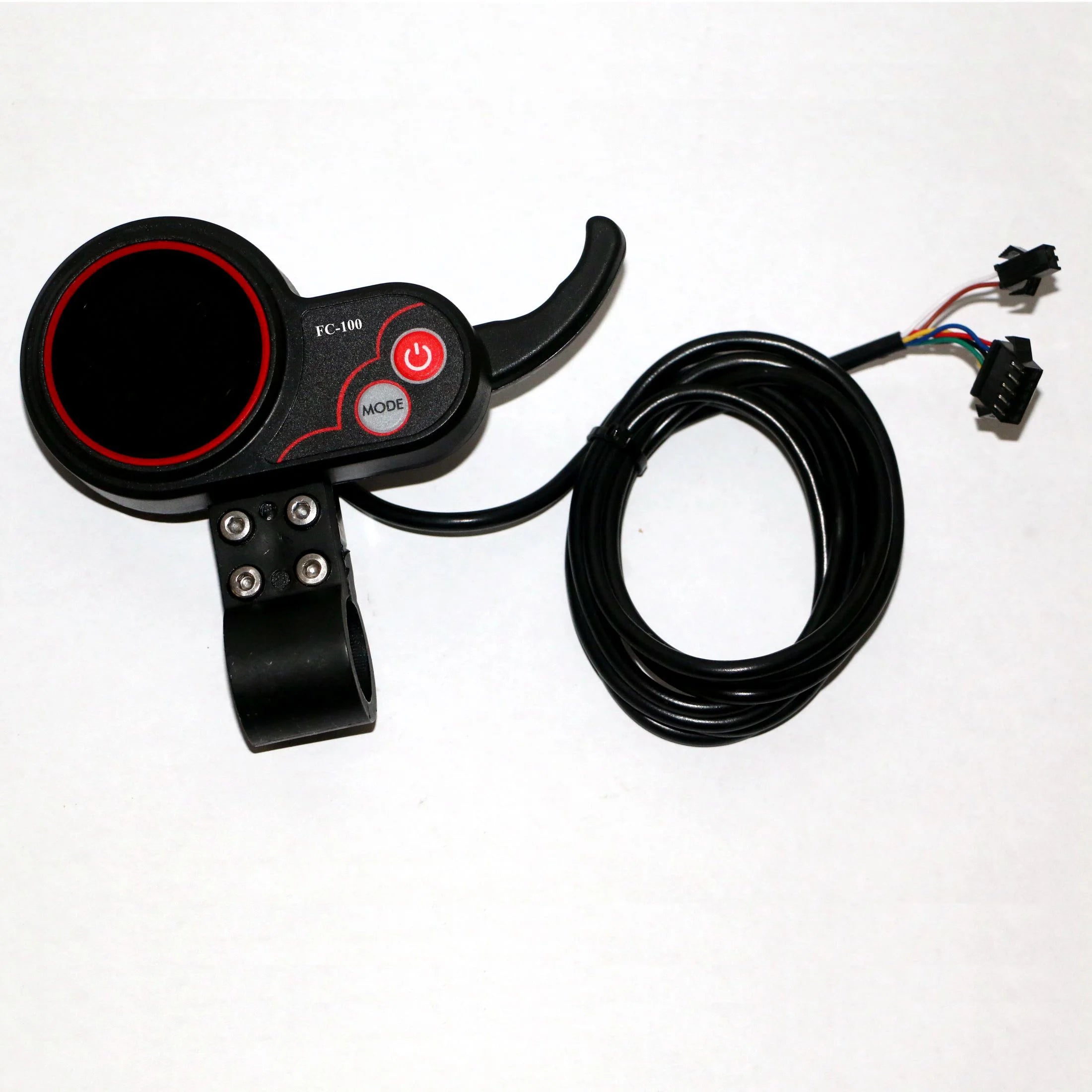

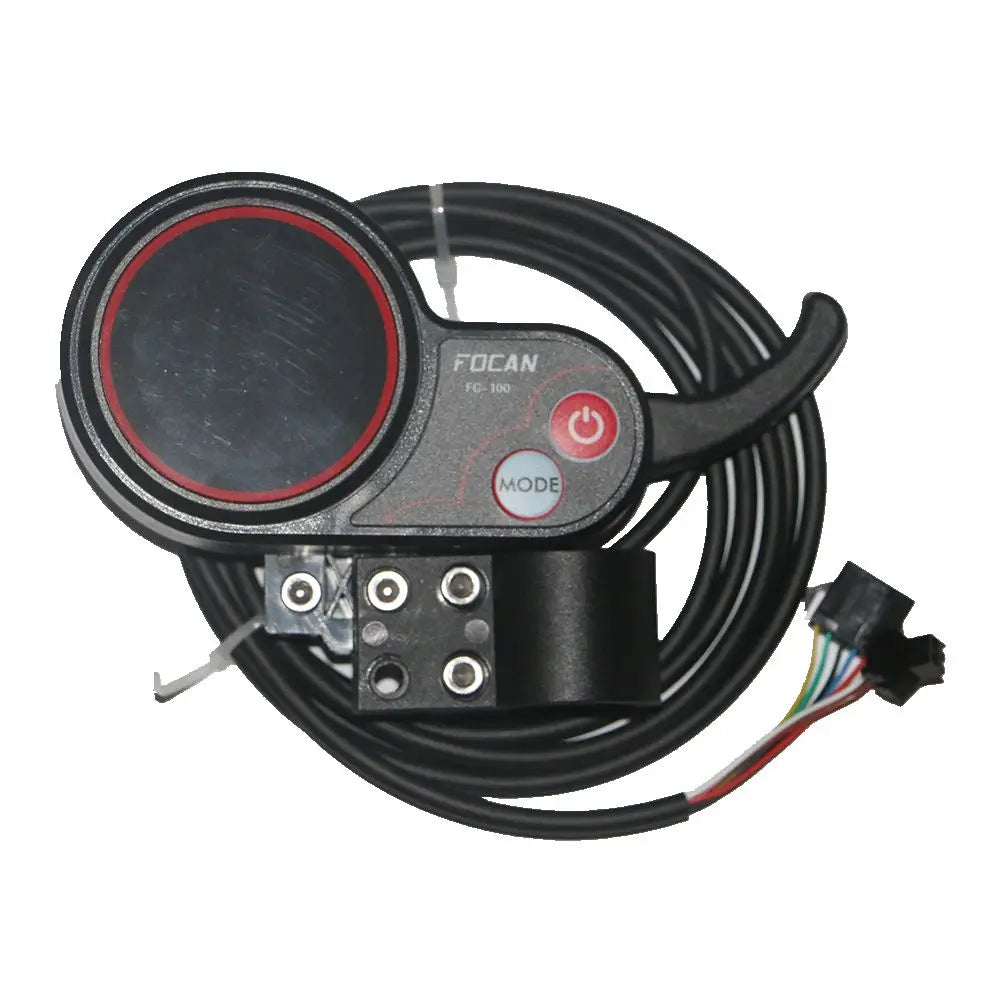

24V 36V 48V 52V 60V Escooter FC-100 LH-100 LCD Display Speedometer For Brushless Speed Controller LH100 Display

Note:

Not Universal Model .Please checked and confirmed yourself controller support same communation protocol UART NO.2 ,if not same ,The LCD screen will be show Error Core E10 （Communications Receiving Failure）Used Our Store Controller.

Parameter

Type:FOCAN- LCD display

Condition: 100% Brand New

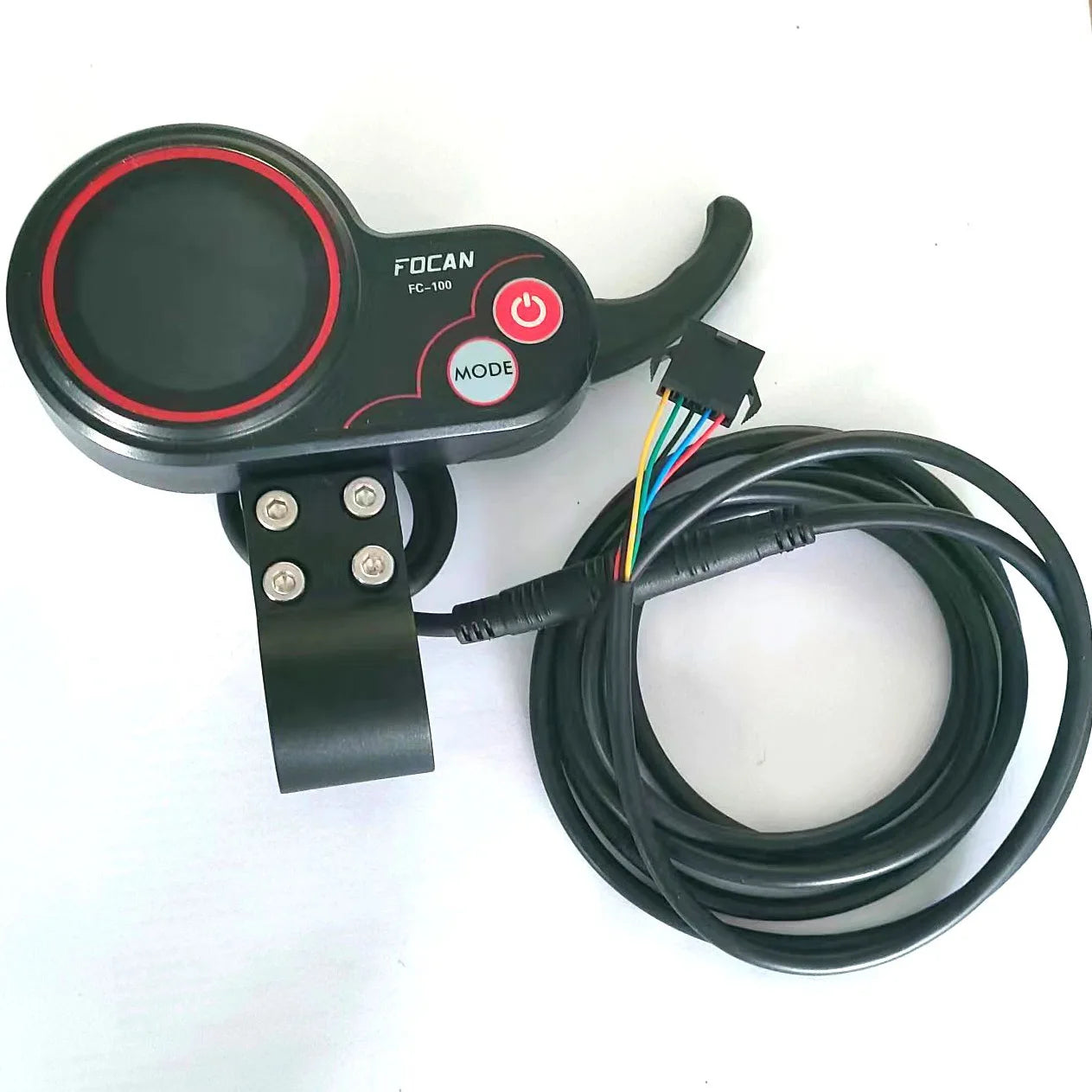

Model : FC-100(Checked SKU Photo For Show)

Voltage:24V 36V 48V 60V adjust By P03 set on screen

Color:Black

Material: Plastic+Acrylic

Operating Temperature :-20 - 45℃

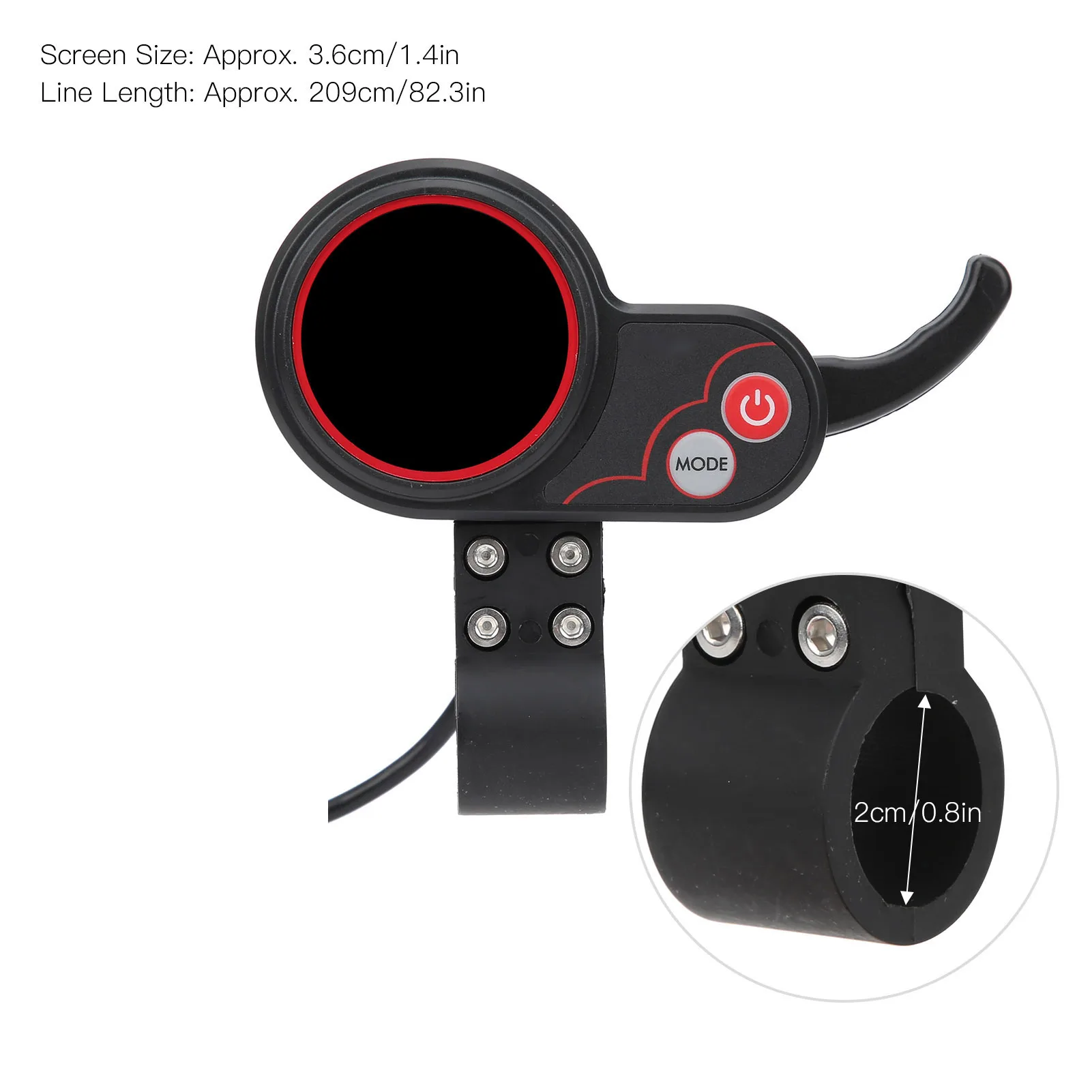

Handlebar size for holding:Φ22.2mm

Length:180±2cm

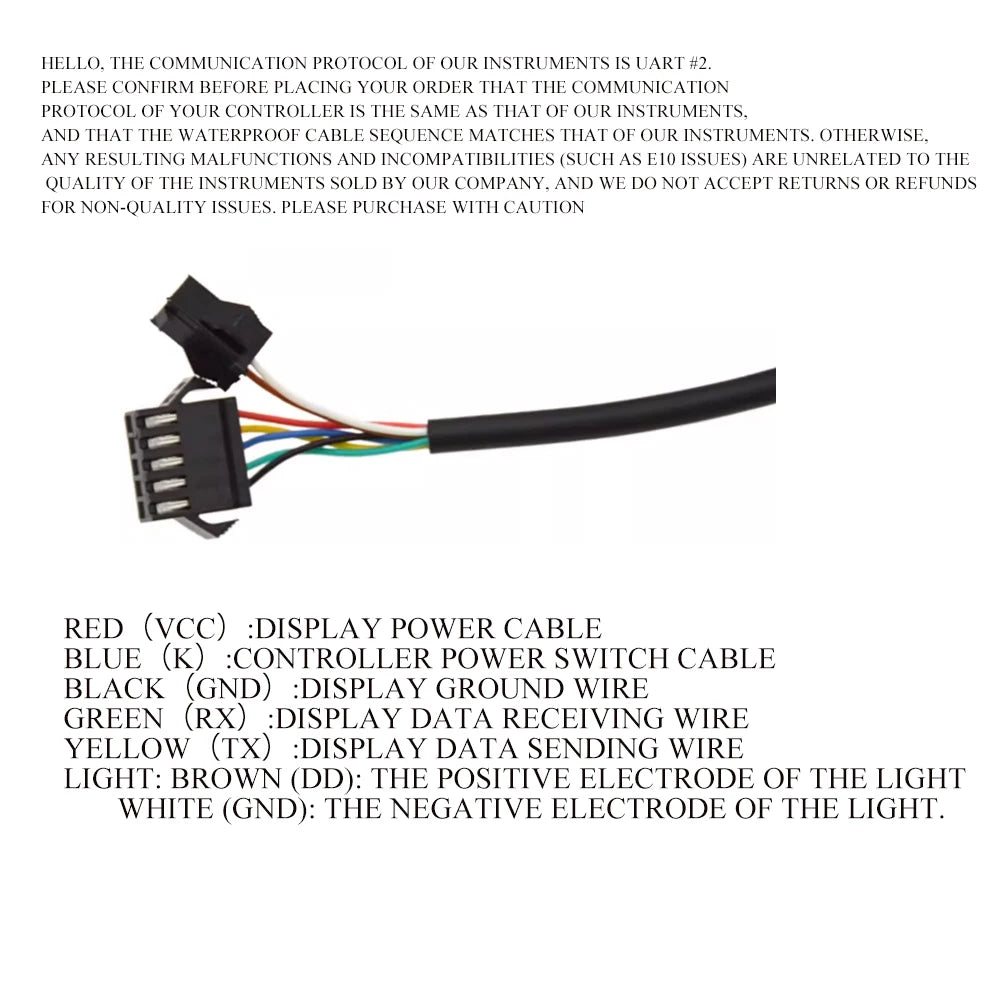

Communication Protocol:UART NO.2(Note:The product is based on the No. 2 communication protocol and needs to be used with the controller of the No. 2 communication protocol, otherwise it is not compatible. )

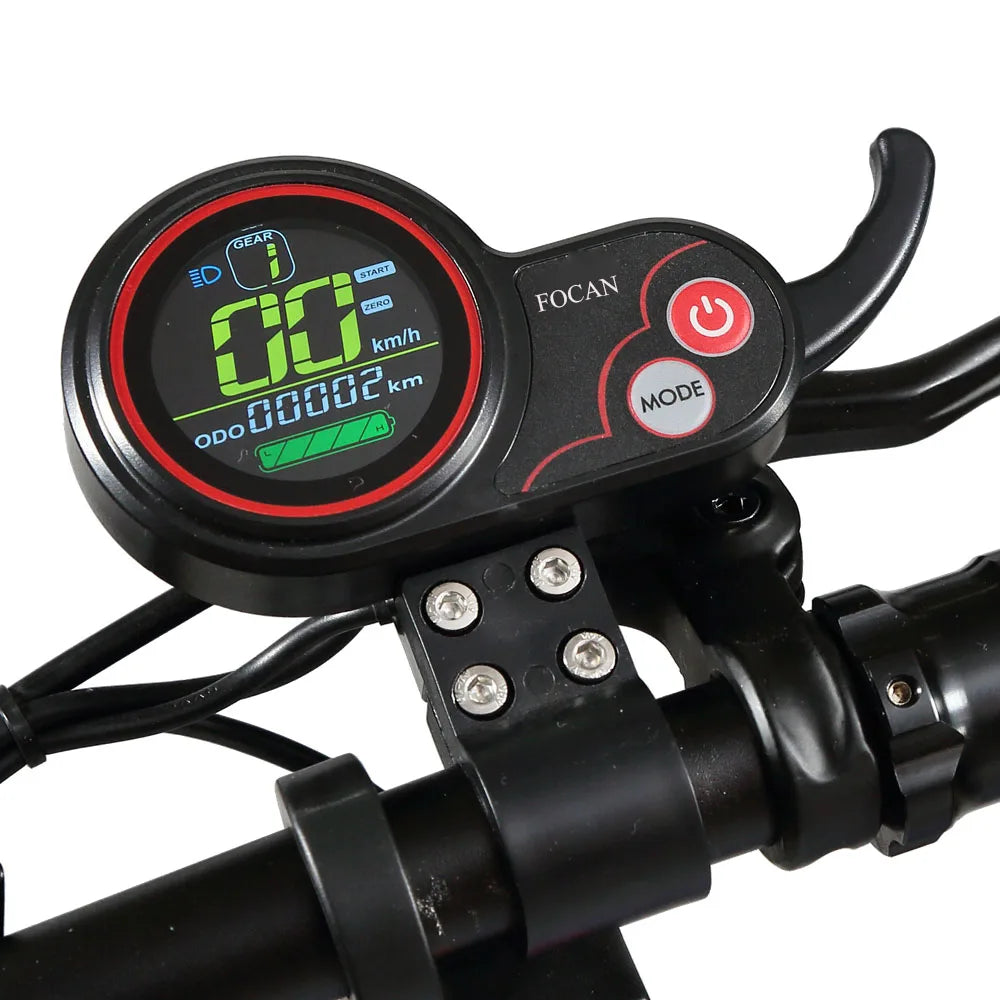

Display Funcation :Speed Display, Battery Level Display, Error Indication, Total Mileage, Single Mileage

Package List:

1 x LCD Display

Note: Due to product upgrade, the product you purchased may be slightly different from the descriptions in this user manual, and this won’t affect normal usage.
